As my second RC car after the Tamiya Grasshopper, I chose the modern DT-04 chassis. However, instead of buying a kit, I decided to build this one entirely from individual parts. This allowed me to create a completely custom machine right from the start. Here is a detailed look at my one-of-a-kind build.
Overall Look and Color Scheme

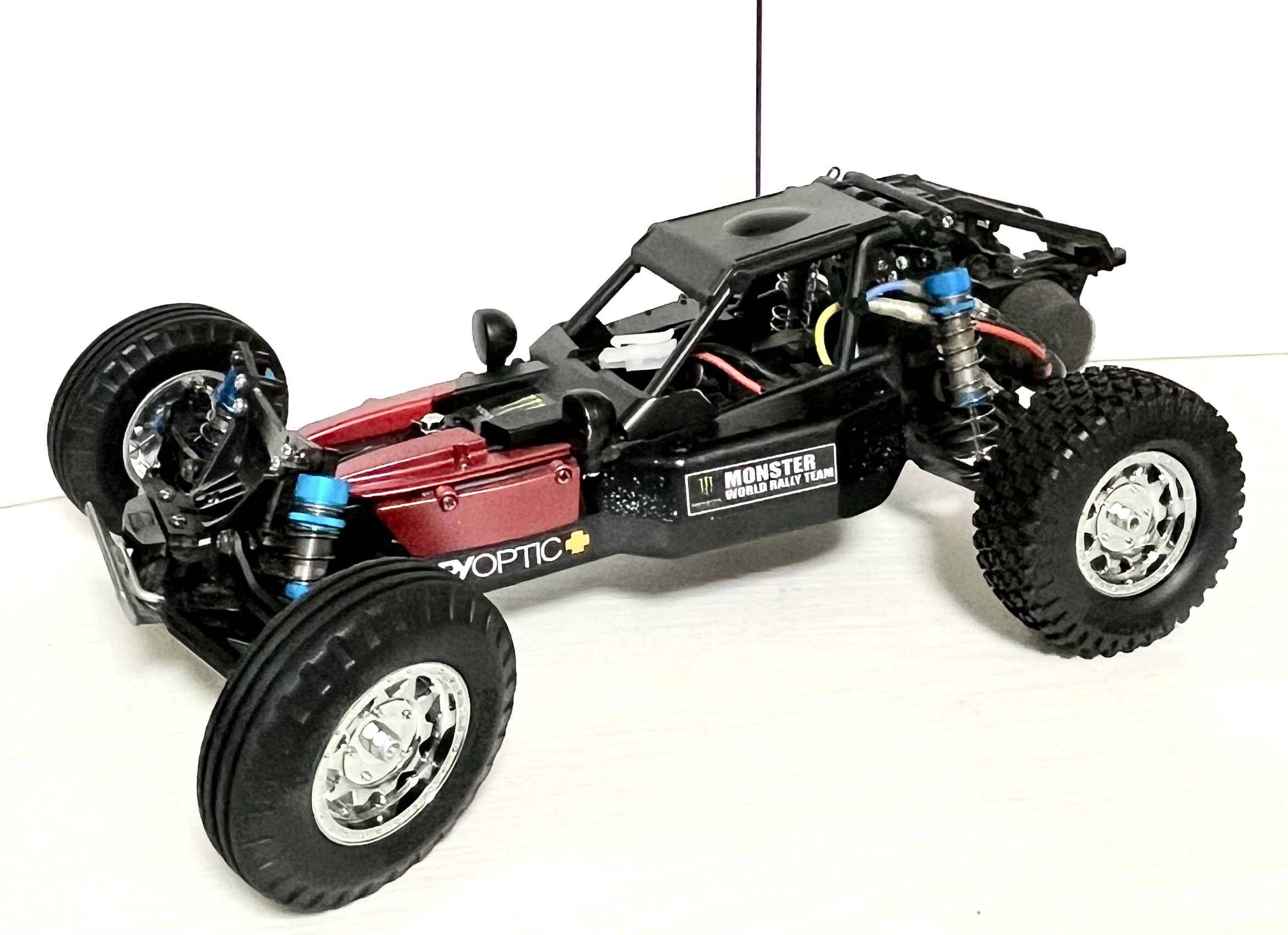

Here is the completed Fighter Nexgen. It features the low-slung, aggressive form of a modern racing buggy.

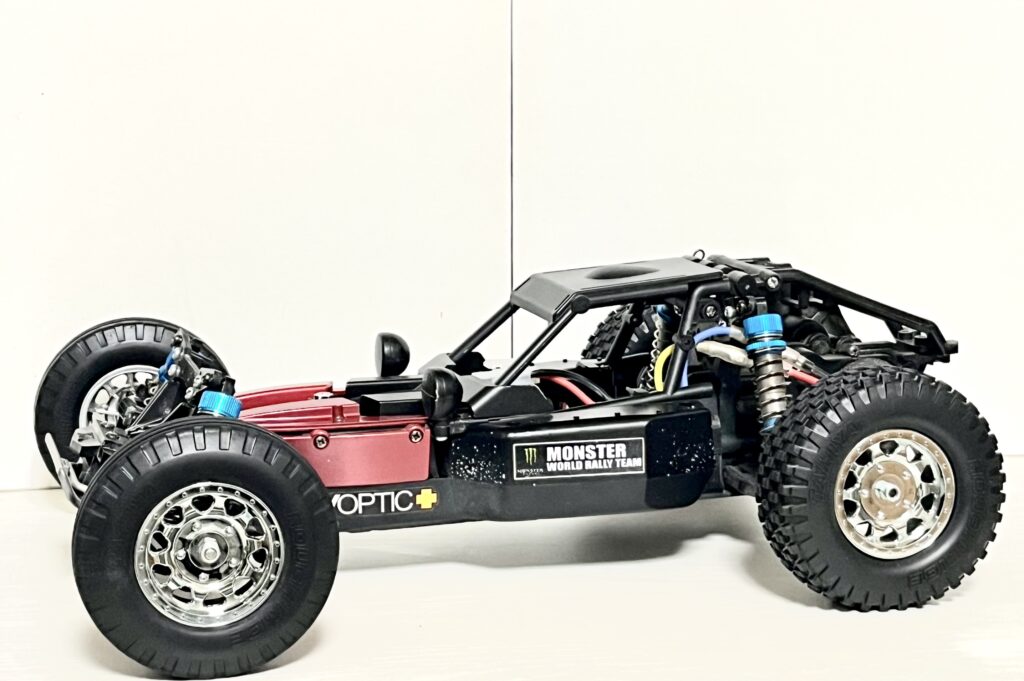

Here is a side view of the car. The color scheme is a combination of red and black, painted with the following Tamiya sprays:
- TS-95 Pure Metallic Red
- TS-29 Semi-Gloss Black
Wheels and Tires: Borrowed from the BBX
The rolling stock was sourced from the Tamiya BBX, as their modern design perfectly complements the DT-04 chassis.
- Wheels: SP.1715 BBX Chrome Plated Wheels (26mm Width, Offset +2mm) 4pcs.
- Front Tires: SP.1716 “Rough Ride” Ribbed Tires (w/Inner Sponge, 2pcs.)
- Rear Tires: SP.1717 “Rough Ride” Block Tires (w/Inner Sponge, 2pcs.)

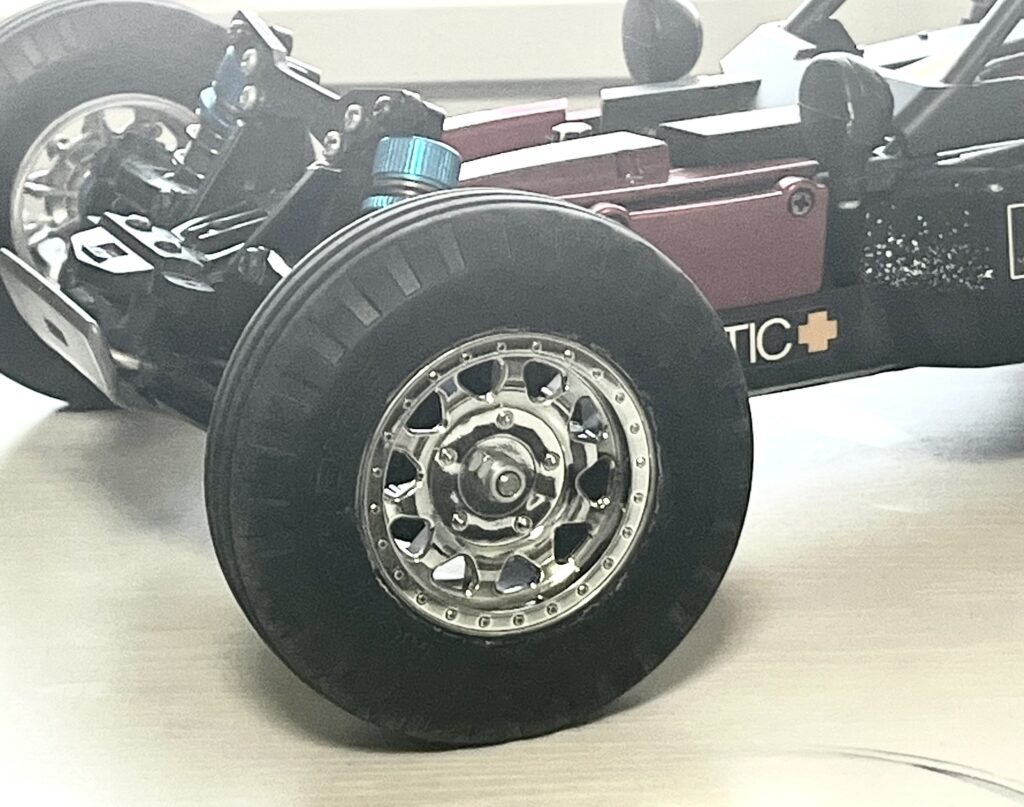

▼ Here is a shot of the front wheel and tire assembly. The chrome finish adds a premium touch.

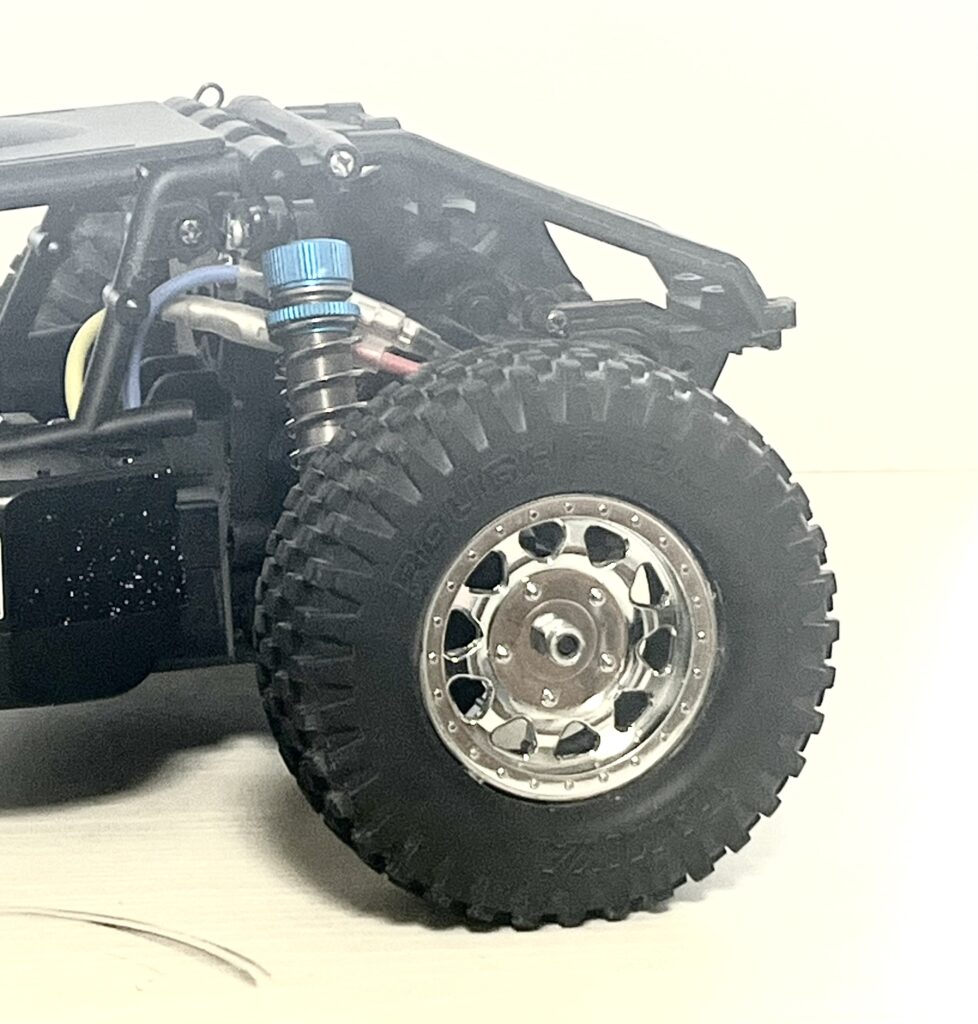

▼ And here is the rear wheel and tire. The unique block pattern hints at excellent off-road performance.

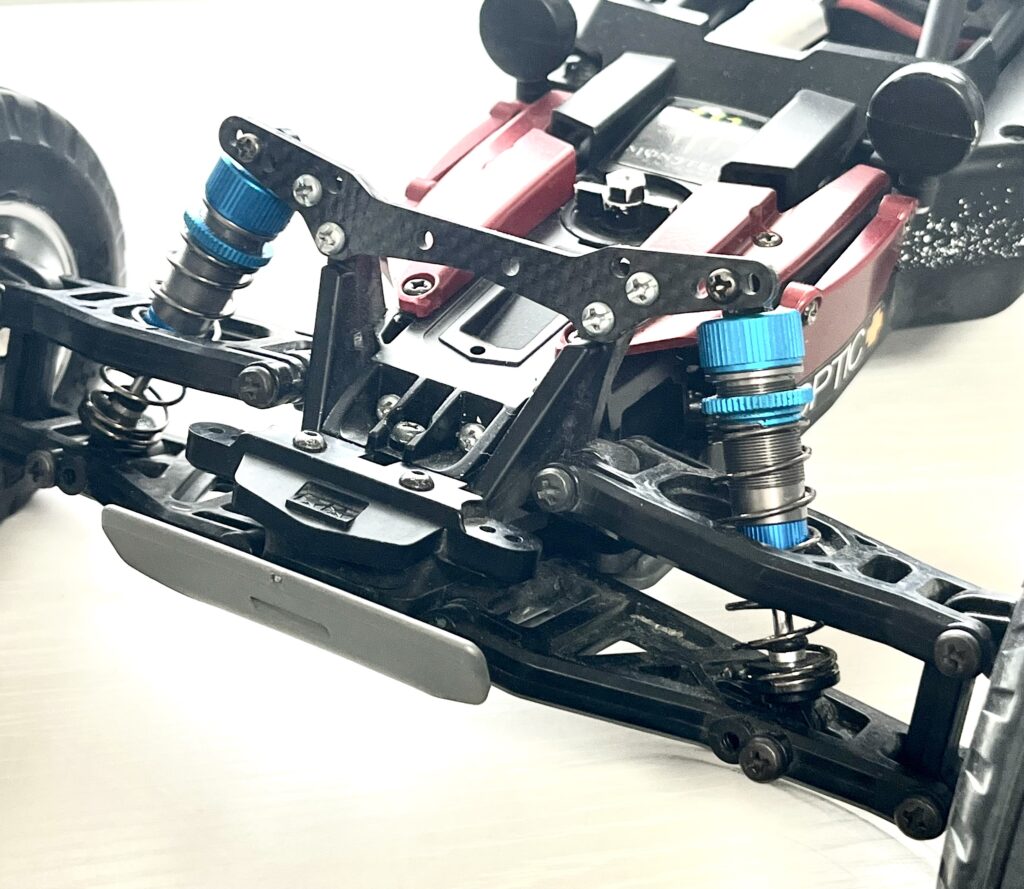

Front Suspension Setup
The front suspension is built with reliable Tamiya hop-up parts.
- Damper Stay: OP.2094 DT-04 Carbon Damper Stay Set
- Dampers: OP.1993 TT-02B/DF-03 Aluminum Damper Set
- Springs: OP.927 DF-03 Setting Spring Set (using the soft black springs)
Rear Suspension Setup
The rear end features a mix of parts, including some from Eagle Racing for enhanced performance and adjustability.
- Universal Shafts: Eagle Racing TSD Universal & Diff Joint Set
- Upper Arms: Eagle Racing Rear Adjustable Upper Arms
Hubs and Axles

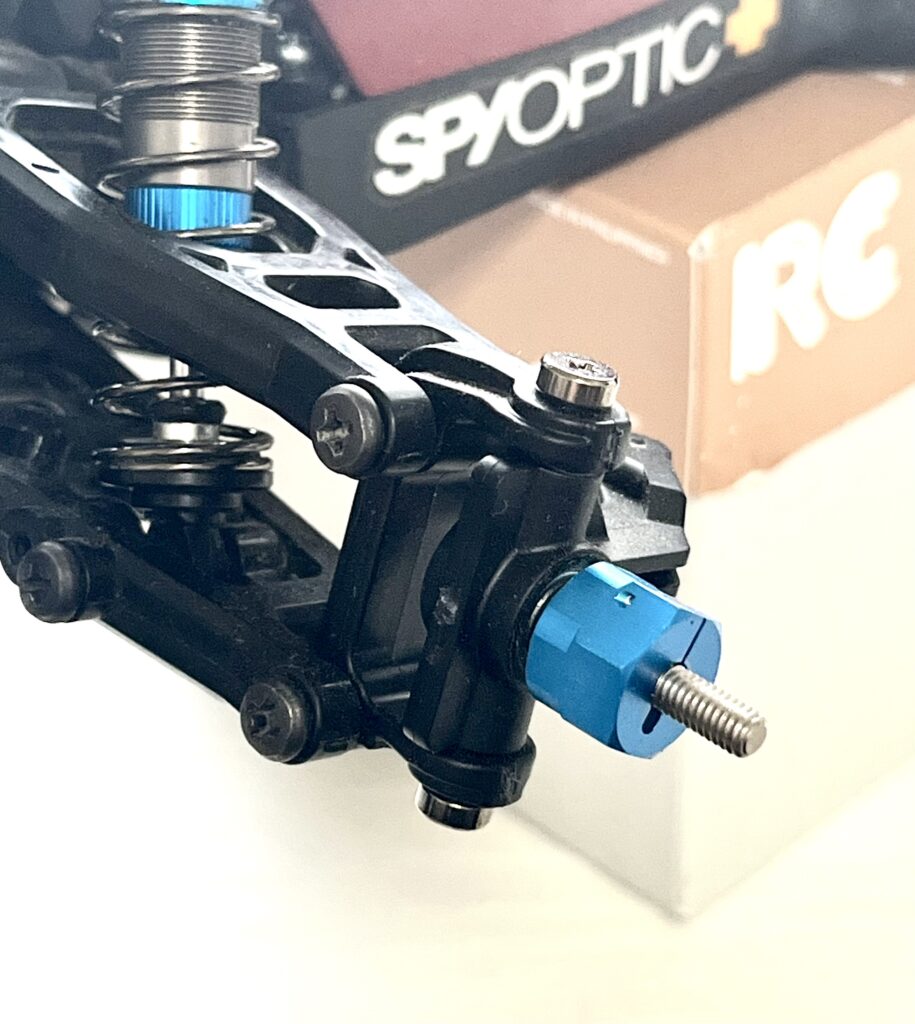

The front hubs and axle shafts are high-precision Tamiya hop-ups for durability.
- Wheel Hubs: OP.1610 Clamp Type Aluminum Wheel Hub (9mm Thick/2pcs.)
- Wheel Axles: OP.2095 DT-04 Freewheel Axles (Long)

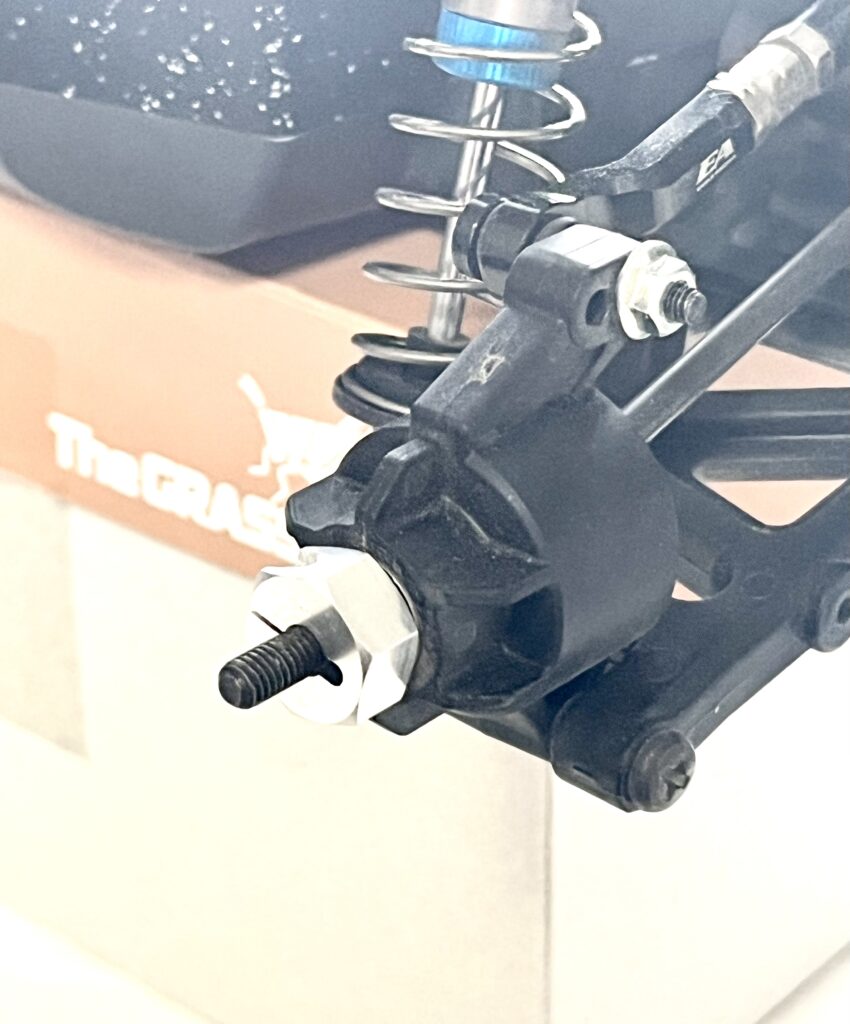

The rear wheel hubs are also Tamiya aluminum parts for secure wheel mounting.
- Wheel Hubs: OP.569 Clamp Type Aluminum Wheel Hub (6mm Thick)

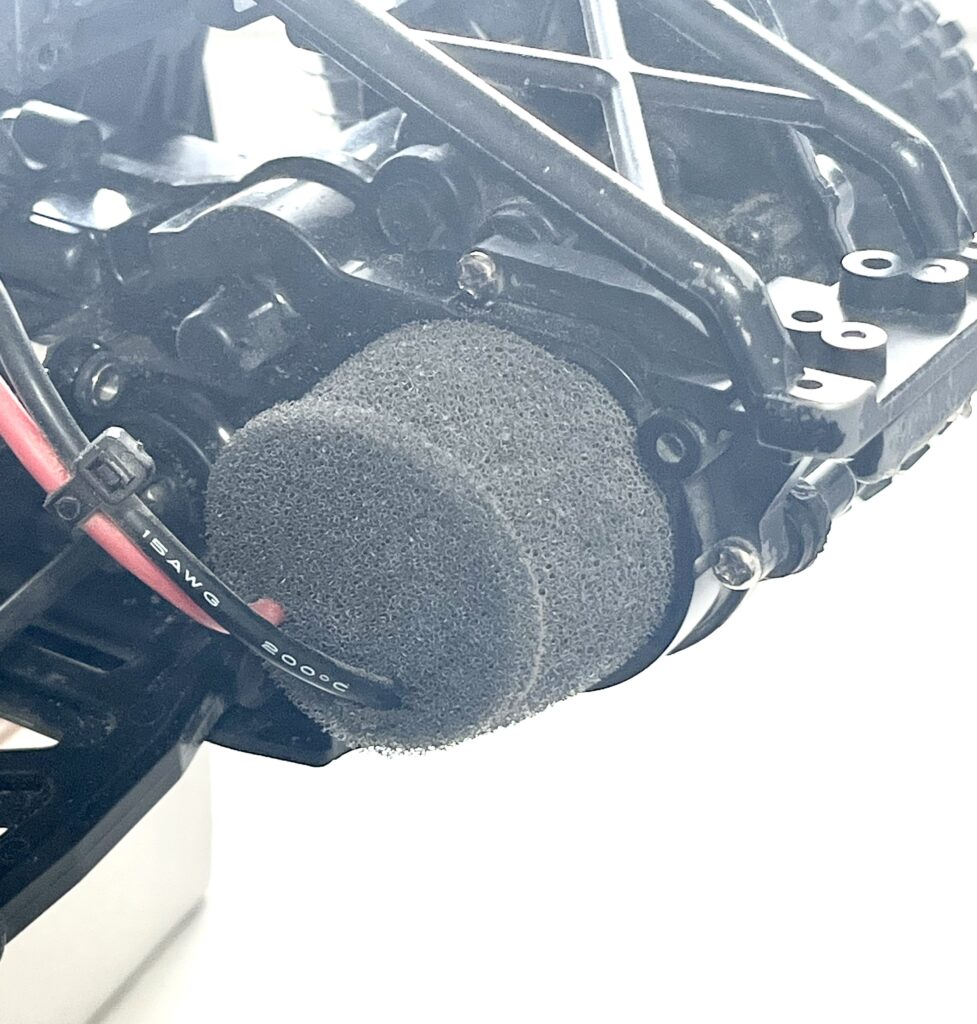

Motor
The motor is a Tamiya option part, offering a great balance of power and drivability.
- Motor: OP.930 Super Stock BZ Motor (23T)
Building a car from individual parts was a challenging but rewarding experience. The satisfaction of creating a completely unique machine is unmatched. Now, it’s time to hit the track and see how this custom DT-04 performs!
Custom Parts Used
The parts used for this customization are listed below.
